North American Rescue Medic ECG

The North American Rescue Medic ECG from Resolute Medical enables rapid field diagnosis of the condition of the heart. This 12-lead ECG is the first device of its kind, designed for the field built to be durable and portable. Featuring Intuitive operation. The industry-leading algorithms allow for automated interpretation of the results. This device comes with Sure-Lock Electrode Clips compatible with both snap and tab electrodes. The MedicECG COMPACT comes with a Panasonic Toughpad FZ-M1 Rugged Handheld Computer designed for critical mobile field applications.

Features:

• • • Lightest and smallest ECG available
    • Designed for use in the field - ruggedized, portable, and easy to use
    • Automated interpretation of ECG rhythms to alert the user of patient risks
    • Results can be transferred through field communication channels
    • Includes rugged, 7" tablet for viewing, interpreting, or sending data
    • Useful for early diagnosis of abnormal heart conditions before sending personnel to the field
    • Versatile, inexpensive, and highly portable solution for base hospital ECG testing
    • Exceeds industry standards for ECG accuracy and quality
    • Supplied in muted mil spec colors with crushproof, waterproof, and dustproof case for easy and reliable storage

Specifications:

• • • Leads: 12
    • Electrode Compatibility: Standard
    • Electrode Interface: Snap and Tab
    • Computer Interface: Wired
    • Frequency Range: 0.05 Hz - 150 Hz
    • Sampling Rate: 8000 Hz
    • Analysis Window: 16 seconds
    • Weight in Rucksack Transport (MedicECG): 2.5lbs

Dimension: MedicECG Unit

• • • Dimension (HxWxD): 4.06" x 6.26" x 0.64"
    • Weight: 1lbs

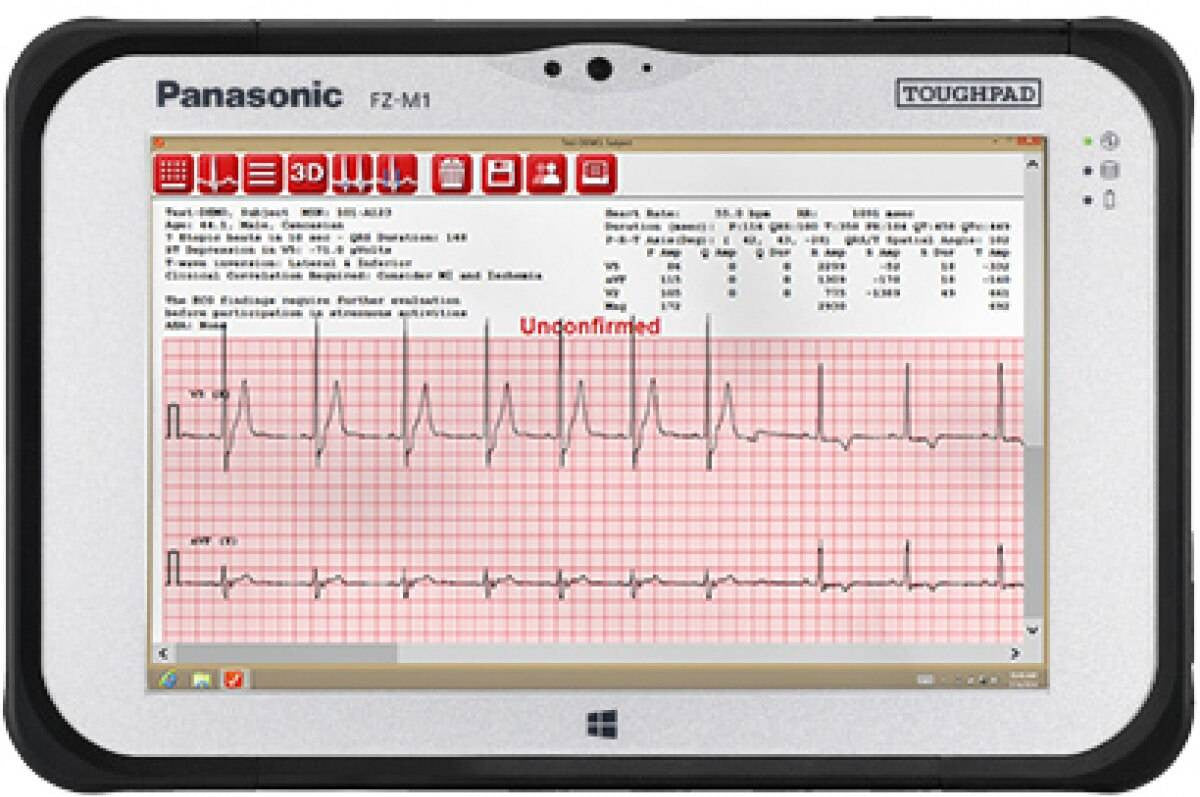

Panasonic Toughpad FZ-M1

• • • Dimension (HxWxD): 7.9" x 5.2" x 0.7"
    • Weight: 1.2lbs

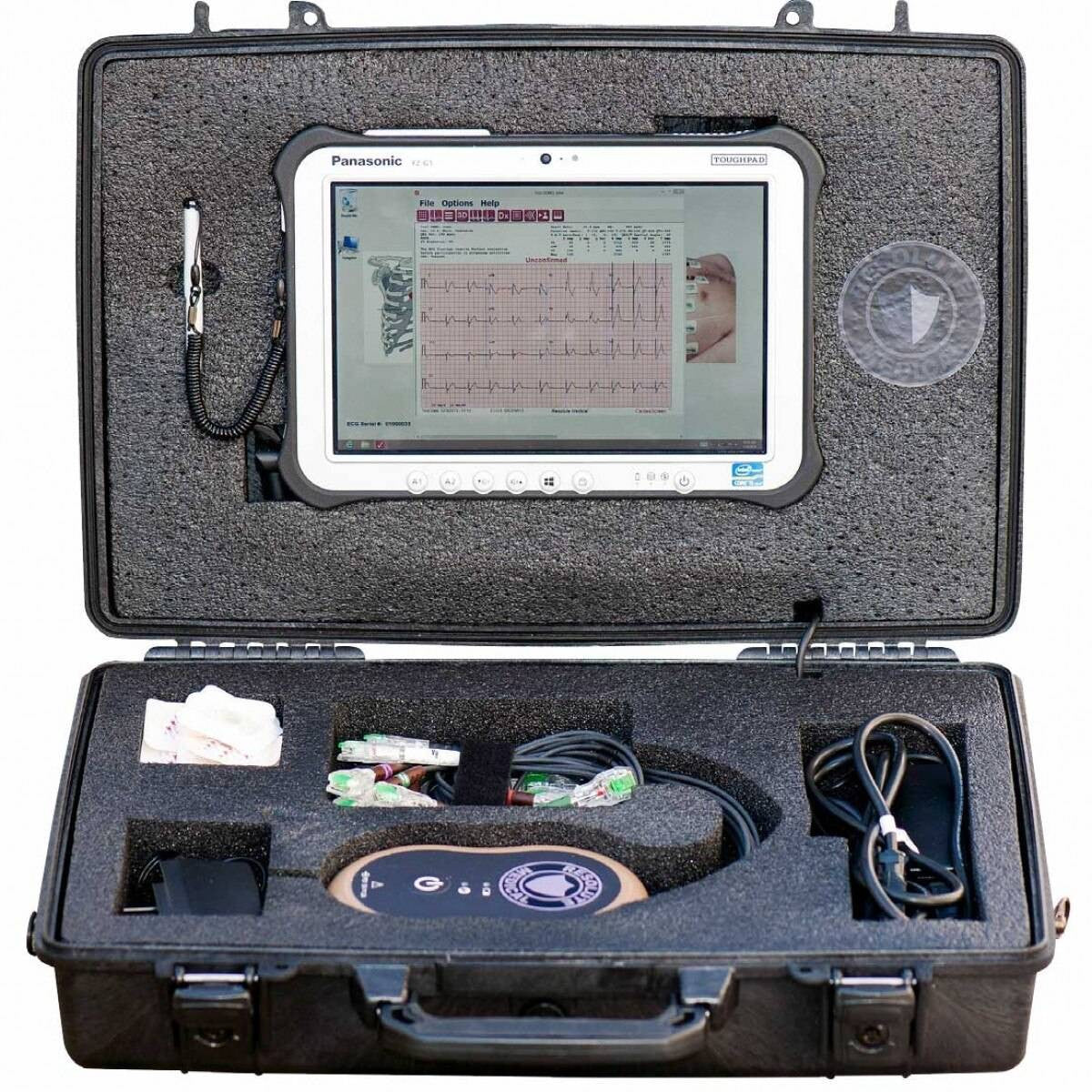

MedicECG COMPACT Kit

• • • Packaged with hard case (HxWxD): 13.5" x 11.25" x 5.5"
    • Weight with hard case: 9.2lbs

Kit Contents:

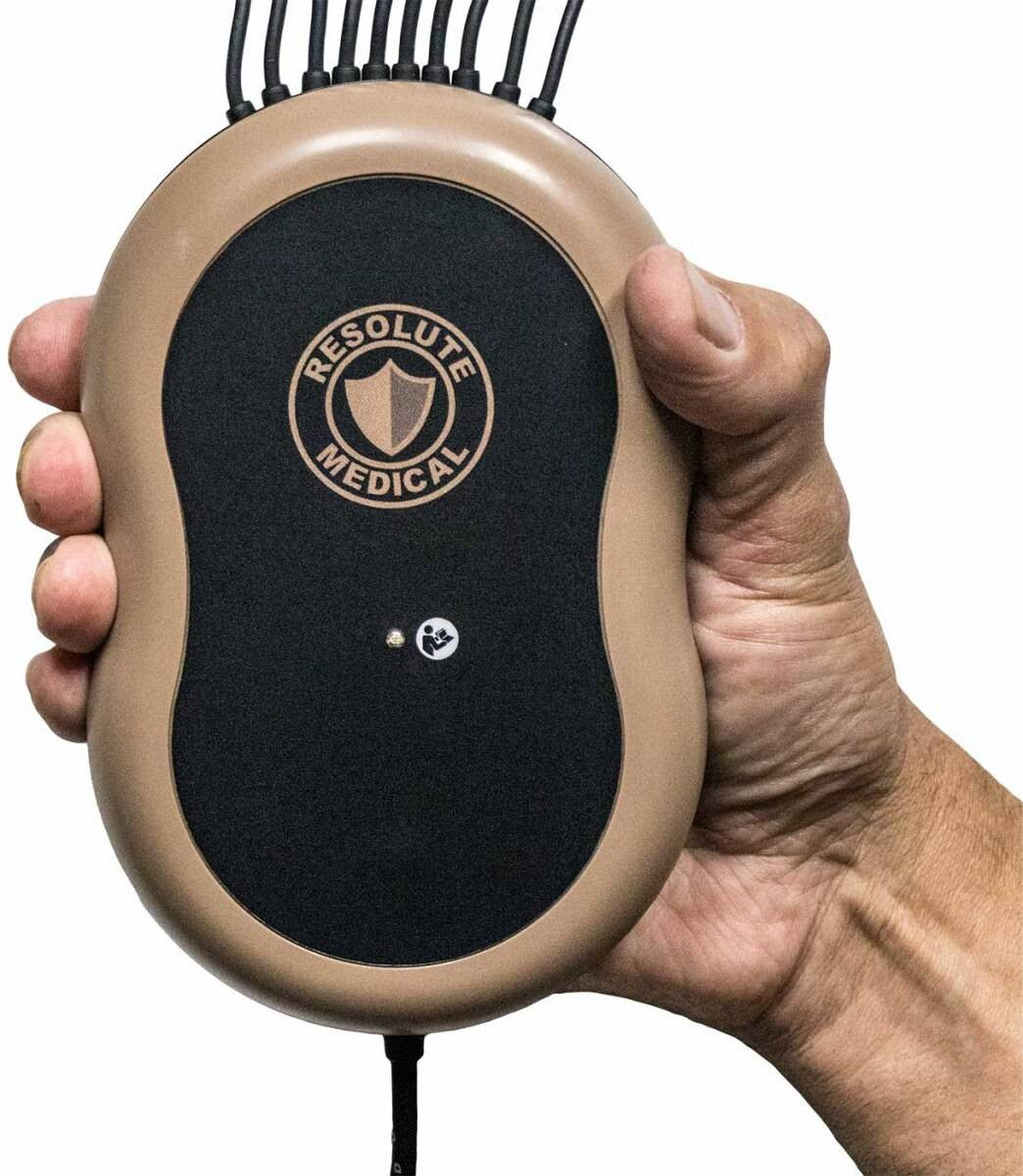

• • • 1 x Resolute Medical MedicECG 12-lead ECG data acquisition unit
    • 1 x Panasonic Toughpad FZ-M1 Rugged Handheld Computer
    • 12 x Electrode Leads
    • 1 x Charger
    • 1 x USB Cable
    • 12 x Electrode Clips compatible with both snap and tab electrodes
    • 12 x Electrodes

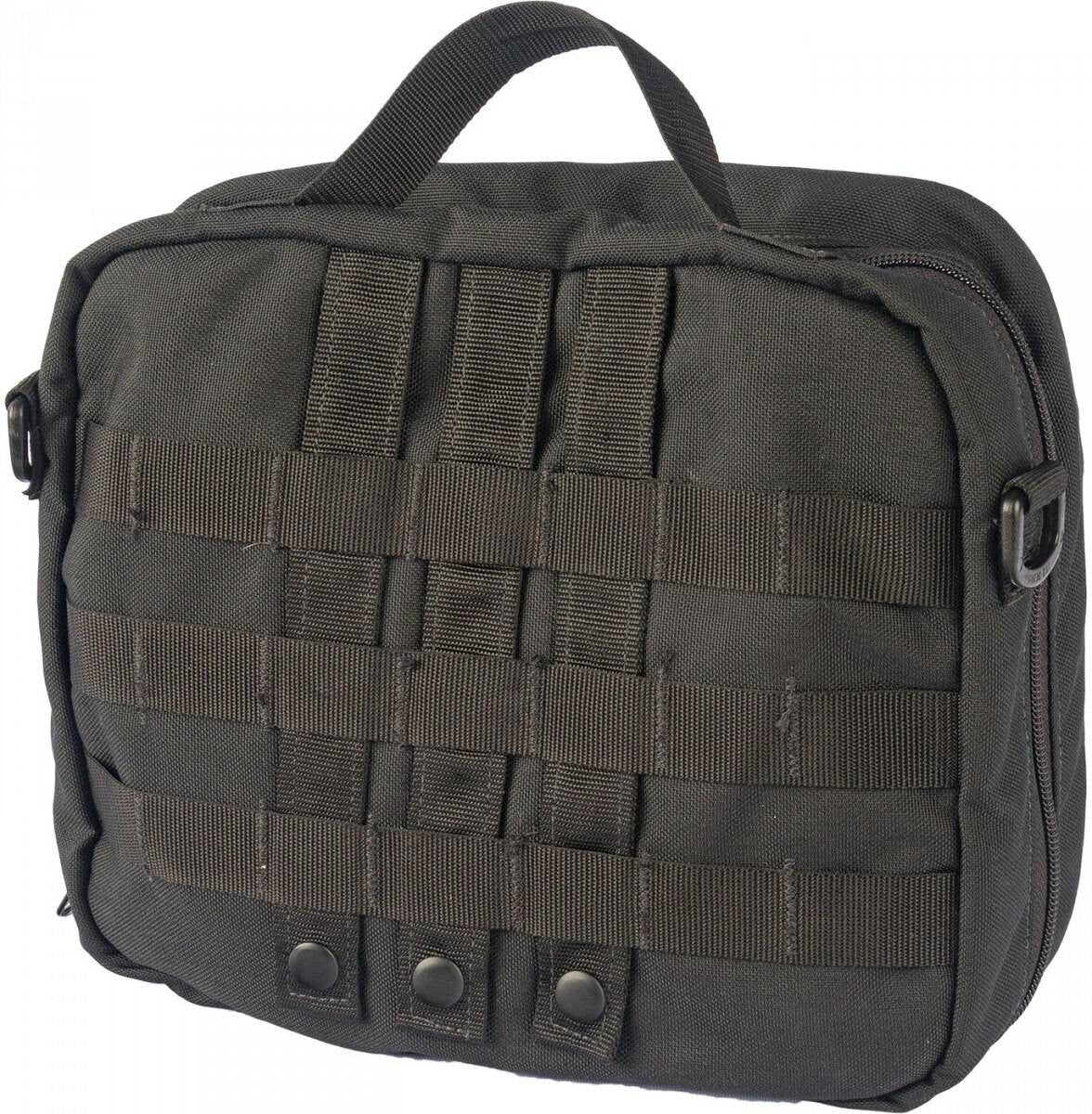

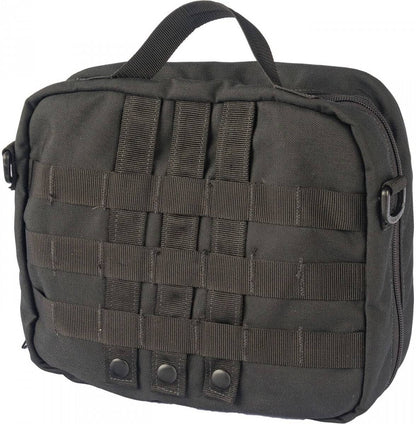

    • 1 x Nylon Bag

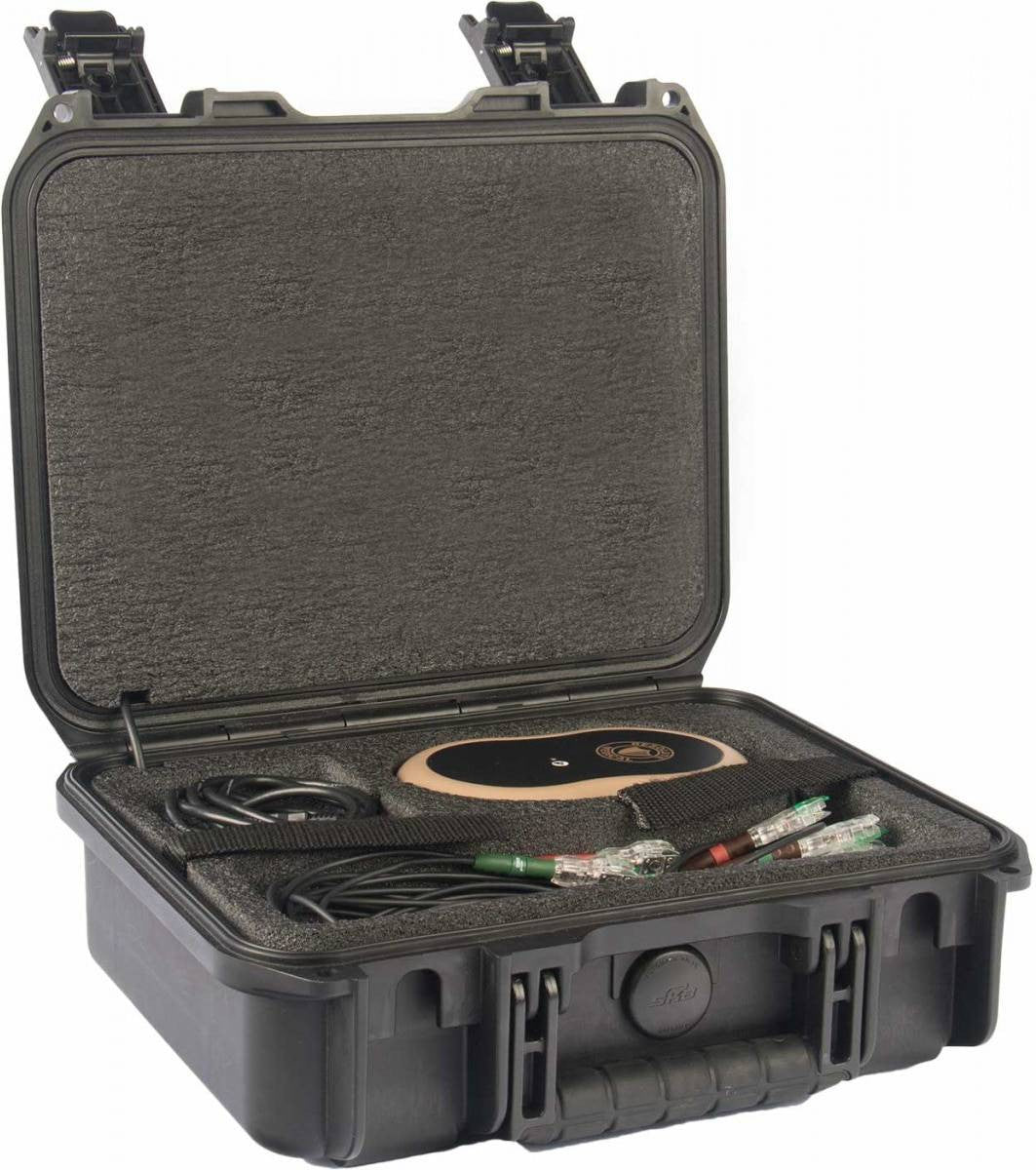

    • 1 x crushproof, waterproof carrying case
